- 規格型號：95097008
- 頻率：10MHz
- 尺寸：12.7*4.7mm
- 產品描述：ABRACON移動通訊晶振,ABLS高精度晶體,ABLS-10.000MHZ-16-A-4-H-T進口晶振，美國Abracon晶振公司，艾博康晶振，進口晶振，ABLS-10.000MHZ-16-A-4-H-T晶振，無源晶振，高精度晶振，石英晶體，低損耗晶振，汽車晶振，移動...

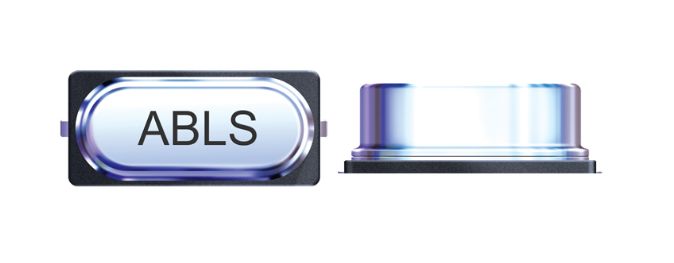

ABRACON移動通訊晶振,ABLS高精度晶體,ABLS-10.000MHZ-16-A-4-H-T進口晶振
.jpg)
ABRACON移動通訊晶振,ABLS高精度晶體,ABLS-10.000MHZ-16-A-4-H-T進口晶振，美國Abracon晶振公司，艾博康晶振，進口晶振，ABLS-10.000MHZ-16-A-4-H-T晶振，無源晶振，高精度晶振，石英晶體，低損耗晶振，汽車晶振，移動通訊晶振，美國晶振，高品質晶振，低損耗晶振，高精度晶振，49SMD晶振，四腳晶振，貼片晶振。適用于嚴格的穩定性和擴展，溫度范圍，計算機，調制解調器，微處理器，無線應用

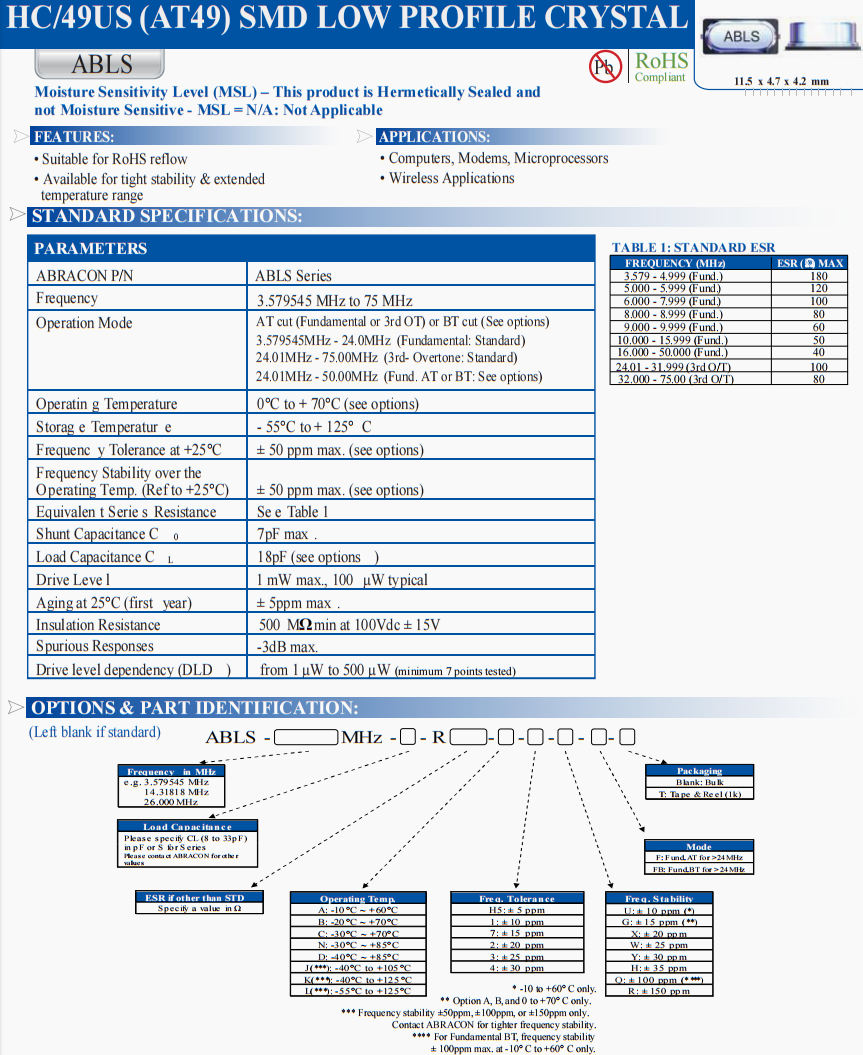

| ABRACON P/N | ABLS Series |
| 頻率 | 3.579545 MHz to 75 MHz |
| 工作溫度 | 0°C to + 70°C (see options) |
| 儲存溫度 | - 55°C to + 125° C |
| 頻率容差 | ± 50 ppm max. (see options) |
| 頻率穩定度 | ± 50 ppm max. (see options) |
| 等效串聯電阻 | Se e Table 1 |
| 分流電容 | 7pF max . |
| 負載電容 | 18pF (see options |
| 驅動電平 | 1 mW max., 100 μW typical |
| 老化 | ± 5ppm max . |
| 絕緣電阻 | 500 MΩmin at 100Vdc ± 15V |
| 虛假反應 | -3dB max. |
| 驅動器級別依賴關系（DLD） | from 1 μW to 500 μW (minimum 7 points tested) |
ABRACON移動通訊晶振,ABLS高精度晶體,ABLS-10.000MHZ-16-A-4-H-T進口晶振
| 編碼 | 品牌 | 型號 | 頻率 | 頻率穩定度 | 頻率容差 | 負載 |
| ABLS-10.000MHZ-16-A-4-H-T | Abracon | ABLS | 10 MHz | ±35ppm | ±30ppm | 16 pF |
| ABLS-10.000MHZ-20-B-3-H-T | Abracon | ABLS | 10 MHz | ±35ppm | ±25ppm | 20 pF |
| ABLS-10.000MHZ-20-T | Abracon | ABLS | 10 MHz | ±50ppm | ±50ppm | 20 pF |
| ABLS-10.000MHZ-B2-T | Abracon | ABLS | 10 MHz | ±50ppm | ±20ppm | 18 pF |
| ABLS-10.000MHZ-B4-T | Abracon | ABLS | 10 MHz | ±50ppm | ±30ppm | 18 pF |
| ABLS-10.000MHZ-B4Y-T | Abracon | ABLS | 10 MHz | ±30ppm | ±30ppm | 18 pF |
| ABLS-10.000MHZ-D-3-Y-T | Abracon | ABLS | 10 MHz | ±30ppm | ±25ppm | 18 pF |
| ABLS-10.000MHZ-K4T | Abracon | ABLS | 10 MHz | ±50ppm | ±30ppm | 18 pF |
| ABLS-10.000MHZ-L4Q-T | Abracon | ABLS | 10 MHz | ±100ppm | ±30ppm | 18 pF |
| ABLS-10.240MHZ-B4-T | Abracon | ABLS | 10.24 MHz | ±50ppm | ±30ppm | 18 pF |
| ABLS-10.72044MHZ-10-D4Y-T | Abracon | ABLS | 10.72044 MHz | ±30ppm | ±30ppm | 10 pF |
| ABLS-10.7477MHZ-10-D4Y-T | Abracon | ABLS | 10.7477 MHz | ±30ppm | ±30ppm | 10 pF |
| ABLS-11.000MHZ-D-3-Y-T | Abracon | ABLS | 11 MHz | ±30ppm | ±25ppm | 18 pF |
| ABLS-11.000MHZ-D-4-Y-T | Abracon | ABLS | 11 MHz | ±30ppm | ±30ppm | 18 pF |
| ABLS-11.0592MHZ-20-B-3-H-T | Abracon | ABLS | 11.0592 MHz | ±35ppm | ±25ppm | 20 pF |
| ABLS-11.0592MHZ-20-B-4-H-T | Abracon | ABLS | 11.0592 MHz | ±35ppm | ±30ppm | 20 pF |
| ABLS-11.0592MHZ-20-B-4-Y-T | Abracon | ABLS | 11.0592 MHz | ±30ppm | ±30ppm | 20 pF |
| ABLS-11.0592MHZ-20-L-4-Q-T | Abracon | ABLS | 11.0592 MHz | ±100ppm | ±30ppm | 20 pF |
| ABLS-11.0592MHZ-32-B-4-Y-T | Abracon | ABLS | 11.0592 MHz | ±30ppm | ±30ppm | 32 pF |
| ABLS-11.0592MHZ-B2-T | Abracon | ABLS | 11.0592 MHz | ±50ppm | ±20ppm | 18 pF |
| ABLS-11.0592MHZ-B4-T | Abracon | ABLS | 11.0592 MHz | ±50ppm | ±30ppm | 18 pF |
| ABLS-11.0592MHZ-D-4-H-T | Abracon | ABLS | 11.0592 MHz | ±35ppm | ±30ppm | 18 pF |
| ABLS-11.0592MHZ-K4T | Abracon | ABLS | 11.0592 MHz | ±50ppm | ±30ppm | 18 pF |
| ABLS-11.0592MHZ-L4Q-T | Abracon | ABLS | 11.0592 MHz | ±100ppm | ±30ppm | 18 pF |
| ABLS-11.0592MHZ-T | Abracon | ABLS | 11.0592 MHz | ±50ppm | ±50ppm | 18 pF |
| ABLS-12.000MHZ-16-A-4-H-T | Abracon | ABLS | 12 MHz | ±35ppm | ±30ppm | 16 pF |
| ABLS-12.000MHZ-20-B-3-H-T | Abracon | ABLS | 12 MHz | ±35ppm | ±25ppm | 20 pF |
| ABLS-12.000MHZ-20-B4Y-T | Abracon | ABLS | 12 MHz | ±30ppm | ±30ppm | 20 pF |
| ABLS-12.000MHZ-20-D-3-H-T | Abracon | ABLS | 12 MHz | ±35ppm | ±25ppm | 20 pF |
| ABLS-12.000MHZ-20-D-4-H-T | Abracon | ABLS | 12 MHz | ±35ppm | ±30ppm | 20 pF |
| ABLS-12.000MHZ-30-4Y-T | Abracon | ABLS | 12 MHz | ±30ppm | ±30ppm | 30 pF |
| ABLS-12.000MHZ-30-A-4-H-T | Abracon | ABLS | 12 MHz | ±35ppm | ±30ppm | 30 pF |
| ABLS-12.000MHZ-32-B-4-Y-T | Abracon | ABLS | 12 MHz | ±30ppm | ±30ppm | 32 pF |
| ABLS-12.000MHZ-B-4-Y-T | Abracon | ABLS | 12 MHz | ±30ppm | ±30ppm | 18 pF |
| ABLS-12.000MHZ-B2-T | Abracon | ABLS | 12 MHz | ±50ppm | ±20ppm | 18 pF |
| ABLS-12.000MHZ-B4-T | Abracon | ABLS | 12 MHz | ±50ppm | ±30ppm | 18 pF |
| ABLS-12.000MHZ-B4H-T | Abracon | ABLS | 12 MHz | ±35ppm | ±30ppm | 18 pF |
| ABLS-12.000MHZ-D4Y-T | Abracon | ABLS | 12 MHz | ±30ppm | ±30ppm | 18 pF |
| ABLS-12.000MHZ-K4T | Abracon | ABLS | 12 MHz | ±50ppm | ±30ppm | 18 pF |
| ABLS-12.000MHZ-L4Q-T | Abracon | ABLS | 12 MHz | ±100ppm | ±30ppm | 18 pF |
| ABLS-12.11876MHZ-10-D4Y-T | Abracon | ABLS | 12.11876 MHz | ±30ppm | ±30ppm | 10 pF |
| ABLS-12.1496MHZ-10-D4Y-T | Abracon | ABLS | 12.1496 MHz | ±30ppm | ±30ppm | 10 pF |
| ABLS-12.1875MHZ-10-R20-D-T | Abracon | ABLS | 12.1875 MHz | ±50ppm | ±50ppm | 10 pF |
| ABLS-12.288MHZ-20-B-3-H-T | Abracon | ABLS | 12.288 MHz | ±35ppm | ±25ppm | 20 pF |
| ABLS-12.288MHZ-20-B-4-Y-T | Abracon | ABLS | 12.288 MHz | ±30ppm | ±30ppm | 20 pF |
| ABLS-12.288MHZ-20-L-4-Q-T | Abracon | ABLS | 12.288 MHz | ±100ppm | ±30ppm | 20 pF |
| ABLS-12.288MHZ-B2-T | Abracon | ABLS | 12.288 MHz | ±50ppm | ±20ppm | 18 pF |
| ABLS-12.288MHZ-B4-T | Abracon | ABLS | 12.288 MHz | ±50ppm | ±30ppm | 18 pF |
| ABLS-12.288MHZ-D-3-Y-T | Abracon | ABLS | 12.288 MHz | ±30ppm | ±25ppm | 18 pF |
| ABLS-12.288MHZ-D-4-Y-T | Abracon | ABLS | 12.288 MHz | ±30ppm | ±30ppm | 18 pF |
| ABLS-12.288MHZ-K4T | Abracon | ABLS | 12.288 MHz | ±50ppm | ±30ppm | 18 pF |
| ABLS-12.288MHZ-L4Q-T | Abracon | ABLS | 12.288 MHz | ±100ppm | ±30ppm | 18 pF |
| ABLS-12.98883MHZ-10-D4Y-T | Abracon | ABLS | 12.98883 MHz | ±30ppm | ±30ppm | 10 pF |
| ABLS-13.000MHZ-B4-T | Abracon | ABLS | 13 MHz | ±50ppm | ±30ppm | 18 pF |
| ABLS-13.000MHZ-K4T | Abracon | ABLS | 13 MHz | ±50ppm | ±30ppm | 18 pF |
| ABLS-13.000MHZ-L4Q-T | Abracon | ABLS | 13 MHz | ±100ppm | ±30ppm | 18 pF |
| ABLS-13.02187MHZ-10-D4Y-T | Abracon | ABLS | 13.02187 MHz | ±30ppm | ±30ppm | 10 pF |
| ABLS-13.02519MHZ-10-K4Q-T | Abracon | ABLS | 13.02519 MHz | ±100ppm | ±30ppm | 10 pF |
| ABLS-13.0625MHZ-10-K4Q-T | Abracon | ABLS | 13.0625 MHz | ±100ppm | ±30ppm | 10 pF |
| ABLS-13.0625MHZ-10-R20-D-T | Abracon | ABLS | 13.0625 MHz | ±50ppm | ±50ppm | 10 pF |
| ABLS-13.225625MHZ-A2Y-T | Abracon | ABLS | 13.225625 MHz | ±30ppm | ±20ppm | 18 pF |
| ABLS-13.262250MHZ-10-J4Y-T | Abracon | ABLS | 13.26225 MHz | ±30ppm | ±30ppm | 10 pF |
| ABLS-13.48352MHZ-10-D4Y-T | Abracon | ABLS | 13.48352 MHz | ±30ppm | ±30ppm | 10 pF |
| ABLS-13.4916MHZ-10-R20-D-T | Abracon | ABLS | 13.4916 MHz | ±50ppm | ±50ppm | 10 pF |
| ABLS-13.500MHZ-B4-T | Abracon | ABLS | 13.5 MHz | ±50ppm | ±30ppm | 18 pF |
| ABLS-13.5178MHZ-10-D4Y-T | Abracon | ABLS | 13.5178 MHz | ±30ppm | ±30ppm | 10 pF |
| ABLS-13.52127MHZ-10-D4Y-T | Abracon | ABLS | 13.52127 MHz | ±30ppm | ±30ppm | 10 pF |
| ABLS-13.52127MHZ-10-J-4Q-T | Abracon | ABLS | 13.52127 MHz | ±100ppm | ±30ppm | 10 pF |
| ABLS-13.54856MHZ-10-J4Y-T | Abracon | ABLS | 13.54856 MHz | ±30ppm | ±30ppm | 10 pF |
| ABLS-13.560MHZ-10-R20-D-T | Abracon | ABLS | 13.56 MHz | ±50ppm | ±50ppm | 10 pF |
| ABLS-13.560MHZ-10-R30-D-T | Abracon | ABLS | 13.56 MHz | ±50ppm | ±50ppm | 10 pF |
| ABLS-13.560MHZ-B4Y-T | Abracon | ABLS | 13.56 MHz | ±30ppm | ±30ppm | 18 pF |
| ABLS-13.6050MHZ-20-R50-D-T | Abracon | ABLS | 13.605 MHz | ±50ppm | ±50ppm | 20 pF |
| ABLS-13.94916MHZ-10-R20-D-T | Abracon | ABLS | 13.94916 MHz | ±50ppm | ±50ppm | 10 pF |
| ABLS-14.089190MHZ-10-J4Y-T | Abracon | ABLS | 14.08919 MHz | ±30ppm | ±30ppm | 10 pF |
| ABLS-14.276430MHZ-10-J4Y-T | Abracon | ABLS | 14.27643 MHz | ±30ppm | ±30ppm | 10 pF |
