- 規格型號：47122324
- 頻率：32.768KHz

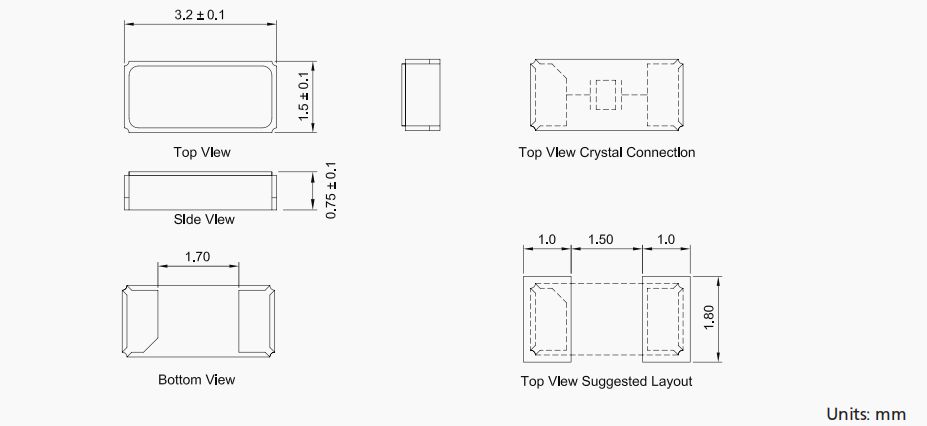

- 尺寸：3215mm
- 產品描述：臺產TXC晶體,液晶儀表盤晶振,AH-32.768KDZB-T音叉晶振，臺灣TXC晶振公司，晶技晶振，音叉晶振，32.768K晶振，3215晶振，AH-32.768KDZF-T晶振，汽車晶振，汽車電動天窗控制系統晶振，臺灣晶振，貼片晶振，二腳晶振，石...
臺產TXC晶體,液晶儀表盤晶振,AH-32.768KDZB-T音叉晶振

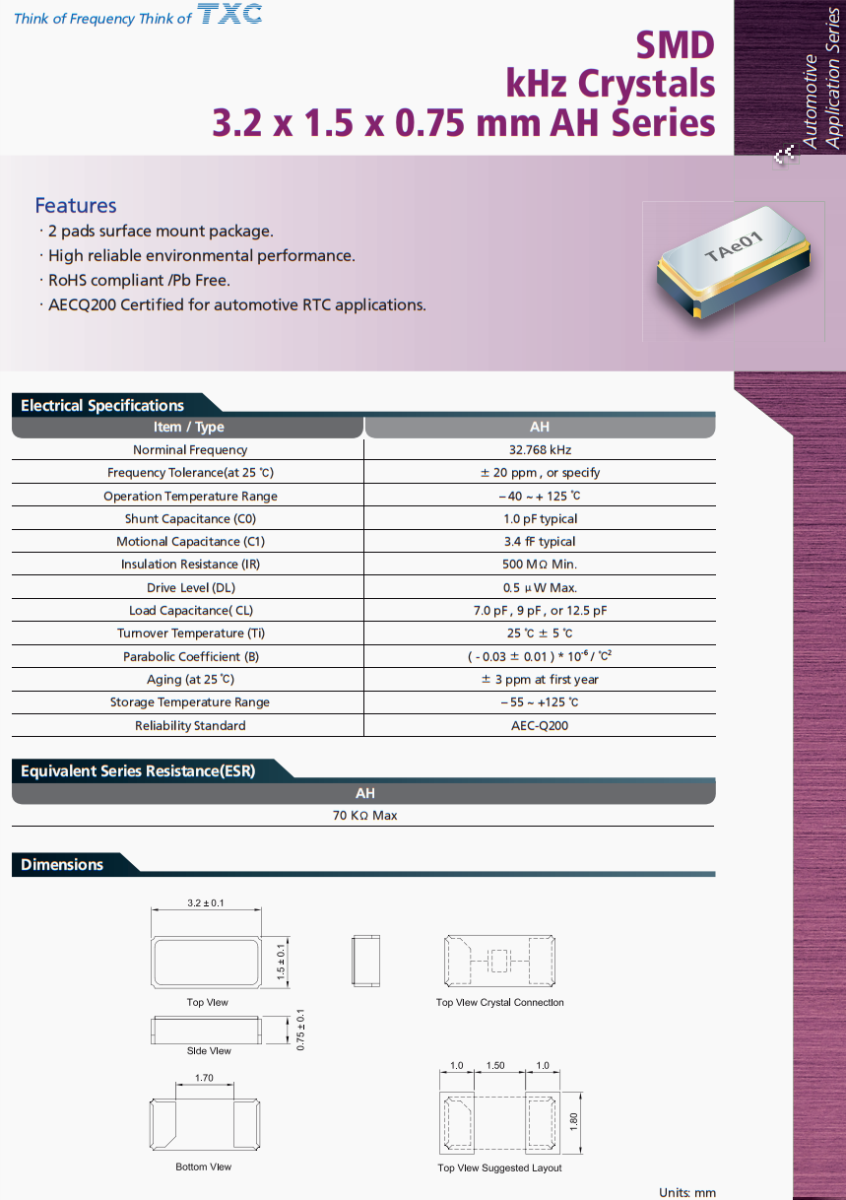

臺產TXC晶體,液晶儀表盤晶振,AH-32.768KDZB-T音叉晶振，臺灣TXC晶振公司，晶技晶振，音叉晶振，32.768K晶振，3215晶振，AH-32.768KDZF-T晶振，汽車晶振，汽車電動天窗控制系統晶振，臺灣晶振，貼片晶振，二腳晶振，石英晶振，高品質晶振，車載多媒體晶振，行車記錄儀晶振，低損耗晶振，耐高溫晶振，耐沖擊晶振。 AH系列SMD,kHz晶體，3.2 x 1.5 x 0.75 mm，功能，2片表面貼裝封裝。高可靠的環保性能。符合RoHS標準/無鉛。AECQ200認證用于汽車RTC應用。
| 型號 | AH |
| 頻率 | 32.768 kHz |
| 頻率容差 | ± 20 ppm , or specify |
| 工作溫度 | – 40 ~ + 125 ℃ |
| 分流電容 | 1.0 pF typical |
| 運動電容 | 3.4 fF typical |
| 絕緣電阻 | 500 MΩ Min. |
| 驅動電平 | 0.5 μW Max. |
| 負載電容 | 7.0 pF , 9 pF , or 12.5 pF |
| 周期溫度 | 25 ℃ ± 5 ℃ |
| 分解代謝系數 | ( - 0.03 ± 0.01 ) * 10-6 / ℃2 |
| 老化 | ± 3 ppm at ?rst year |
| 儲存溫度 | – 55 ~ +125 ℃ |
| 可靠性標準 | AEC-Q200 |
| TXC原廠編碼 | 生產商品牌 | Series | 頻率 | 頻率穩定度 | 頻率容差 | 負載電容 |
| AH-32.768KDZF-T | TXC晶振 | AH | 32.768kHz | - | ±20ppm | 12.5pF |
| AH-32.768KDZB-T | TXC晶振 | AH | 32.768kHz | - | ±20ppm | 6pF |
| AH-32.768KDZY-T | TXC晶振 | AH | 32.768kHz | - | ±20ppm | 7pF |
| AS-4.194304MAHE-B | TXC晶振 | AS | 4.194304MHz | ±30ppm | ±30ppm | 12pF |
| AH-32.768KEWC-T | TXC晶振 | AH | 32.768kHz | - | ±10ppm | 9pF |
| AH-32.768KEWF-T | TXC晶振 | AH | 32.768kHz | - | ±10ppm | 12.5pF |
| AH-32.768KEZC-T | TXC晶振 | AH | 32.768kHz | - | ±10ppm | 9pF |
| AH-32.768KEZF-T | TXC晶振 | AH | 32.768kHz | - | ±10ppm | 12.5pF |
| AH-32.768KDWB-T | TXC晶振 | AH | 32.768kHz | - | ±20ppm | 6pF |
| AH-32.768KDWC-T | TXC晶振 | AH | 32.768kHz | - | ±20ppm | 9pF |
| AH-32.768KDWF-T | TXC晶振 | AH | 32.768kHz | - | ±20ppm | 12.5pF |
| AH-32.768KDZC-T | TXC晶振 | AH | 32.768kHz | - | ±20ppm | 9pF |
| AH-32.768KBZF-T | TXC晶振 | AH | 32.768kHz | - | ±50ppm | 12.5pF |
| AH-32.768KAZF-T | TXC晶振 | AH | 32.768kHz | - | ±30ppm | 12.5pF |
| AS-10.000MDHI-B | TXC晶振 | AS | 10MHz | ±30ppm | ±20ppm | 16pF |
| AS-11.0592MAHI-B | TXC晶振 | AS | 11.0592MHz | ±30ppm | ±30ppm | 16pF |
| AS-11.2896MAGQ-B | TXC晶振 | AS | 11.2896MHz | ±50ppm | ±30ppm | 10pF |
| AS-12.000MAQL-B | TXC晶振 | AS | 12MHz | ±30ppm | ±30ppm | 22pF |
| AS-12.000MDHK-B | TXC晶振 | AS | 12MHz | ±30ppm | ±20ppm | 20pF |
| AS-13.560MDIE-B | TXC晶振 | AS | 13.56MHz | ±20ppm | ±20ppm | 12pF |
| AS-14.31818MDHI-B | TXC晶振 | AS | 14.31818MHz | ±30ppm | ±20ppm | 16pF |
| AS-16.000MAGE-B | TXC晶振 | AS | 16MHz | ±50ppm | ±30ppm | 12pF |
| AS-16.9344MAGH-B | TXC晶振 | AS | 16.9344MHz | ±50ppm | ±30ppm | 15pF |
| AS-3.579545MDHE-B | TXC晶振 | AS | 3.579545MHz | ±30ppm | ±20ppm | 15pF |
| AS-4.000MAGJ-B | TXC晶振 | AS | 4MHz | ±50ppm | ±30ppm | 18pF |
| AS-4.000MAHH-B | TXC晶振 | AS | 4MHz | ±30ppm | ±30ppm | 15pF |
| AS-4.000MDGJ-B | TXC晶振 | AS | 4MHz | ±50ppm | ±20ppm | 18pF |
| AS-4.000MDHK-B | TXC晶振 | AS | 4MHz | ±30ppm | ±20ppm | 20pF |
| AS-4.000MEHK-B | TXC晶振 | AS | 4MHz | ±30ppm | ±10ppm | 20pF |
| AS-8.000MAGE-B | TXC晶振 | AS | 8MHz | ±50ppm | ±30ppm | 12pF |
| AS-8.000MAHI-B | TXC晶振 | AS | 8MHz | ±30ppm | ±30ppm | 16pF |
| AS-3.579545MAHE-B | TXC晶振 | AS | 3.579545MHz | ±30ppm | ±30ppm | 12pF |
| AS-4.000MAHK-B | TXC晶振 | AS | 4MHz | ±30ppm | ±30ppm | 20pF |
| AS-8.000MAHK-B | TXC晶振 | AS | 8MHz | ±30ppm | ±30ppm | 20pF |
| AS-10.000MAHI-B | TXC晶振 | AS | 10MHz | ±30ppm | ±30ppm | 16pF |
| AS-11.2896MAHK-B | TXC晶振 | AS | 11.2896MHz | ±30ppm | ±30ppm | 20pF |
| AS-13.225625MAHK-B | TXC晶振 | AS | 13.225625MHz | ±30ppm | ±30ppm | 20pF |
| AS-13.560MAHE-B | TXC晶振 | AS | 13.56MHz | ±30ppm | ±30ppm | 12pF |
| AS-14.31818MAHI-B | TXC晶振 | AS | 14.31818MHz | ±30ppm | ±30ppm | 16pF |
| AS-16.000MAHK-B | TXC晶振 | AS | 16MHz | ±30ppm | ±30ppm | 20pF |
| AS-16.9344MAHH-B | TXC晶振 | AS | 16.9344MHz | ±30ppm | ±30ppm | 15pF |
| AS-20.500MAHQ-B | TXC晶振 | AS | 20.5MHz | ±30ppm | ±30ppm | 10pF |
| AS-28.63636MAHE-B | TXC晶振 | AS | 28.63636MHz | ±30ppm | ±30ppm | 12pF |
| AS-12.000MAHK-B | TXC晶振 | AS | 12MHz | ±30ppm | ±30ppm | 20pF |
| AS-16.9344MAGI-B | TXC晶振 | AS | 16.9344MHz | ±50ppm | ±30ppm | 16pF |
| AS16000001 | TXC晶振 | AS | 16MHz | ±50ppm | ±30ppm | 12pF |
| AH03200003 | TXC晶振 | AH | 32.768kHz | - | ±20ppm | 12.5pF |
| AH03270003 | TXC晶振 | AH | 32.768kHz | - | ±20ppm | 12.5pF |
| AH03270004 | TXC晶振 | AH | 32.768kHz | - | ±20ppm | 9pF |
